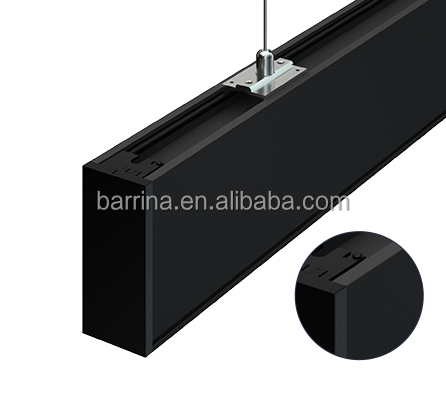

| Product name | LED linear light-3575 |
| Product size | L1200*W35*H75mm |

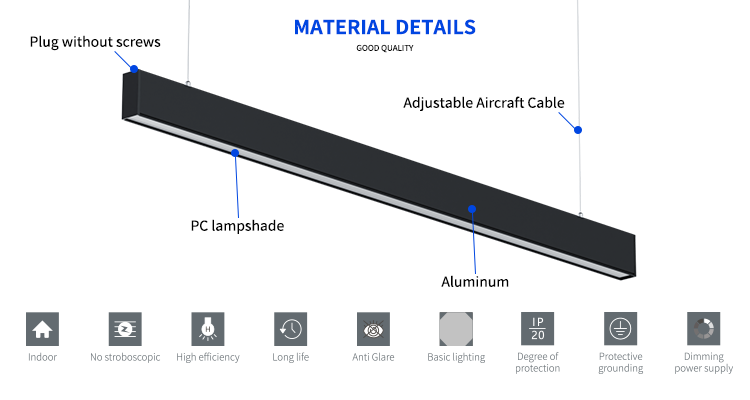

| Material | aluminium+PC |
| Surface treatment | Teflon or Powder coated |
| Color Option | black/white |
| Input voltage | 85-240V 50/60HZ |
| Wattage | 30W/36W/42W/25W |

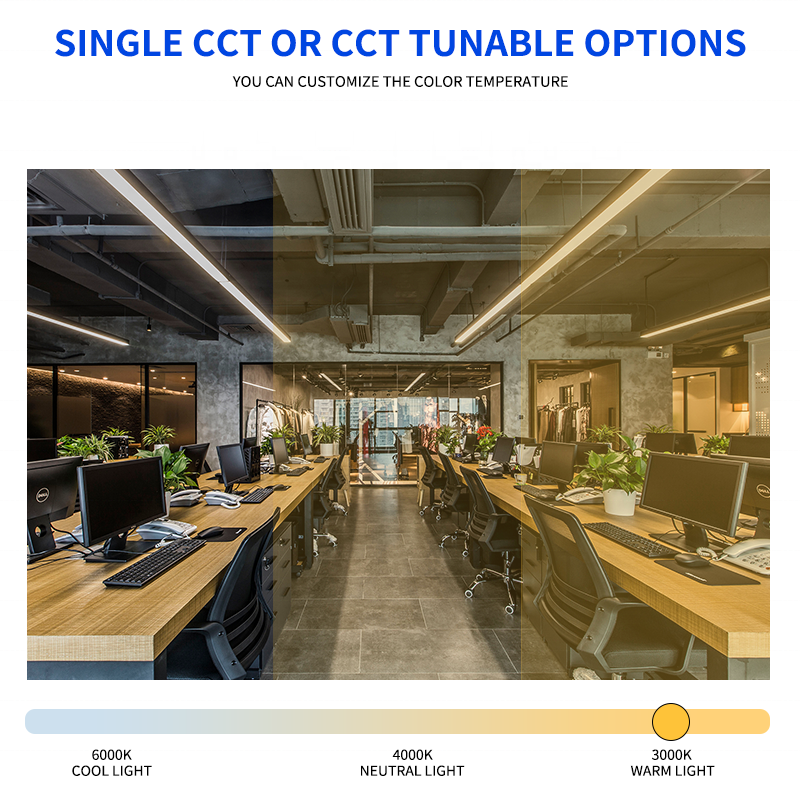

| CCT | 3000K/4000K/6000K |
| Luminous Efficacy(lm/w) | 90lm/w |
| LEDs life span | 50000H |

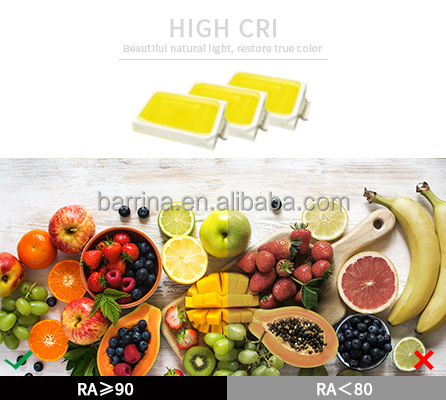

| Color Render(CRI) | RA≥80 or RA≥90 |
| Power Factor(PF) | ≥0.9 |

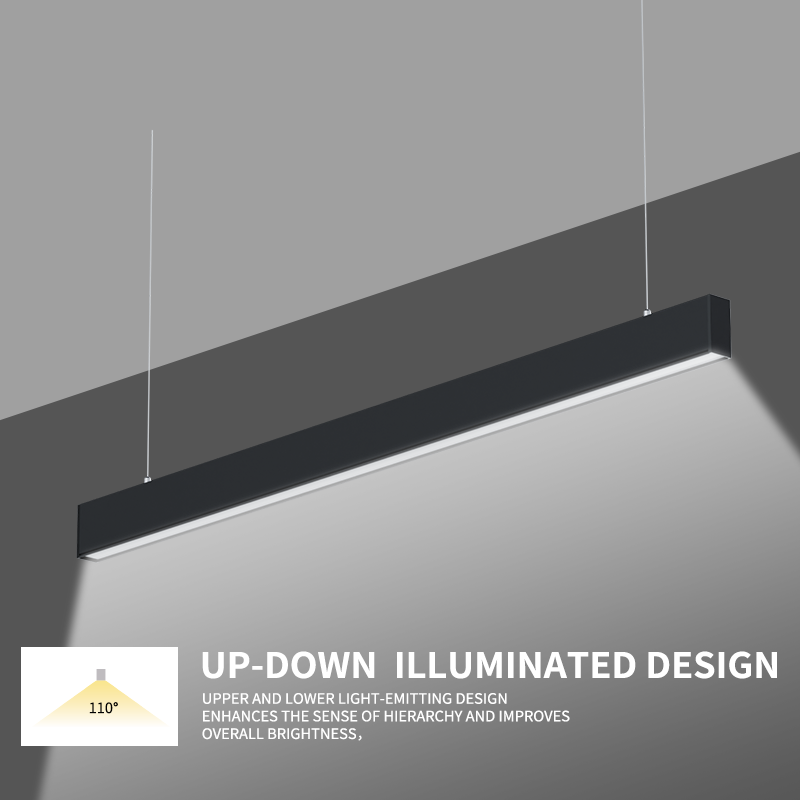

| Beam Angel | 120° |

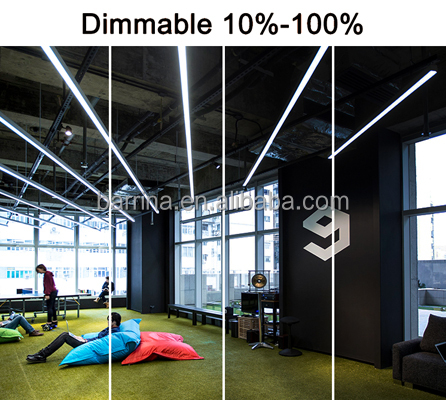

| Optional Features | 0-10V dimming, DALI dimming, 2.4G dimming, CCT dimming |
| IP Rate | IP20 |
| Working Temp(℃) | -20℃-40℃ |
| Certification | CE, ETL, FCC, ROHS, CCC |
| Warranty | 3 Years |
| Model No. | Product size | Voltage | Wattage | Efficacy | PF | CRI | Certificate |
|---|---|---|---|---|---|---|---|
| BTD3575-1230A0 | 1200x35x75mm | 85-277V / 220-240V | 30W | >100lm/w | >90 | >80 | ETL, CE |
| BTD3575-1025A0 | 1000x35x75mm | 85-277V / 220-240V | 25W | >100lm/w | >90 | >80 | ETL, CE |
| BTD3575-0918A0 | 900x35x75mm | 85-277V / 220-240V | 23W | >100lm/w | >90 | >80 | ETL, CE |
| BTD3575-0612A0 | 600x35x75mm | 85-277V / 220-240V | 12W | >100lm/w | >90 | >80 | ETL, CE |
| BTD3575-0306A0 | 300x35x75mm | 85-277V / 220-240V | 6W | >100lm/w | >90 | >80 | ETL, CE |

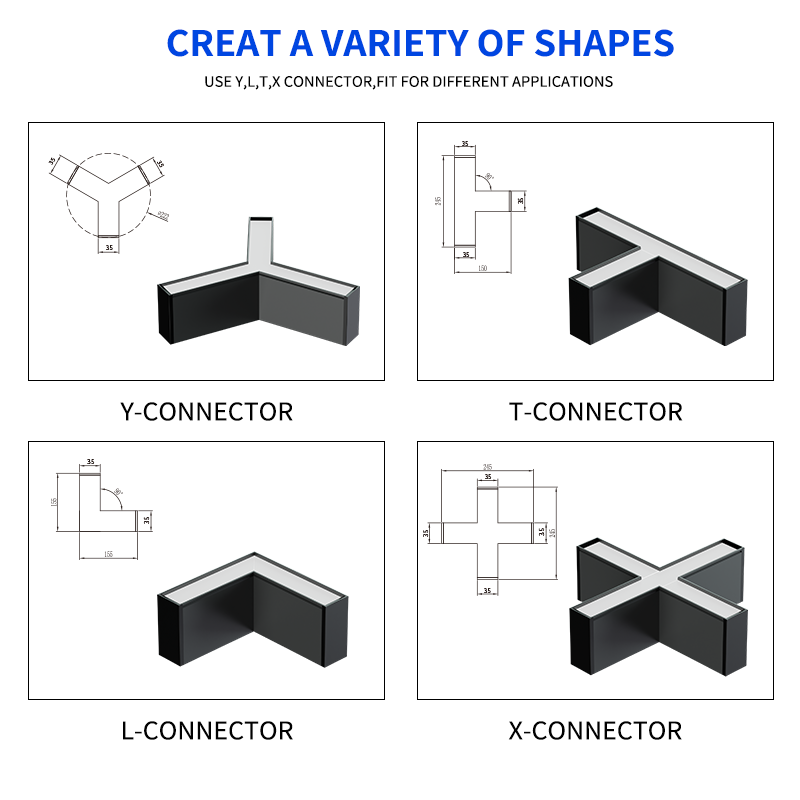

| 90°splicing | 150x150x75mm | 85-277V / 220-240V | 6W | >100lm/w | >90 | >80 | ETL, CE |
| 120°splicing | 228x157x75mm | 85-277V / 220-240V | 6W | >100lm/w | >90 | >80 | ETL, CE |
| T splicing | 245x150x75mm | 85-277V / 220-240V | 8W | >100lm/w | >90 | >80 | ETL, CE |
| Y splicing | 225x260x75mm | 85-277V / 220-240V | 8W | >100lm/w | >90 | >80 | ETL, CE |

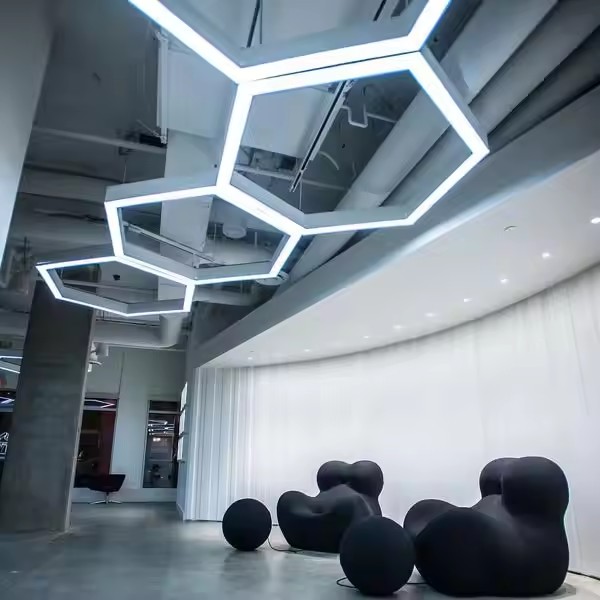

| Cross splicing | 245x245x75mm | 85-277V / 220-240V | 12W | >100lm/w | >90 | >80 | ETL, CE |
1. Our LED linear lights adopt international invention patents to solve industry pain points faced during production, installation and after-sales in the linear light field.

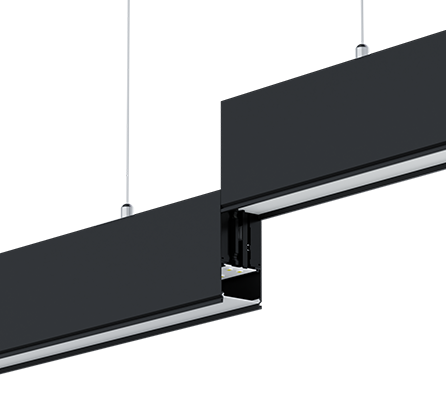

2. Seamless docking technology makes the lights link easily, eliminating quality and process hazards caused by installation. You could link up to 15 lights in a series or use them individually.
3. The products are standardized and integrated, convenient during production, package, shipping, and installation.

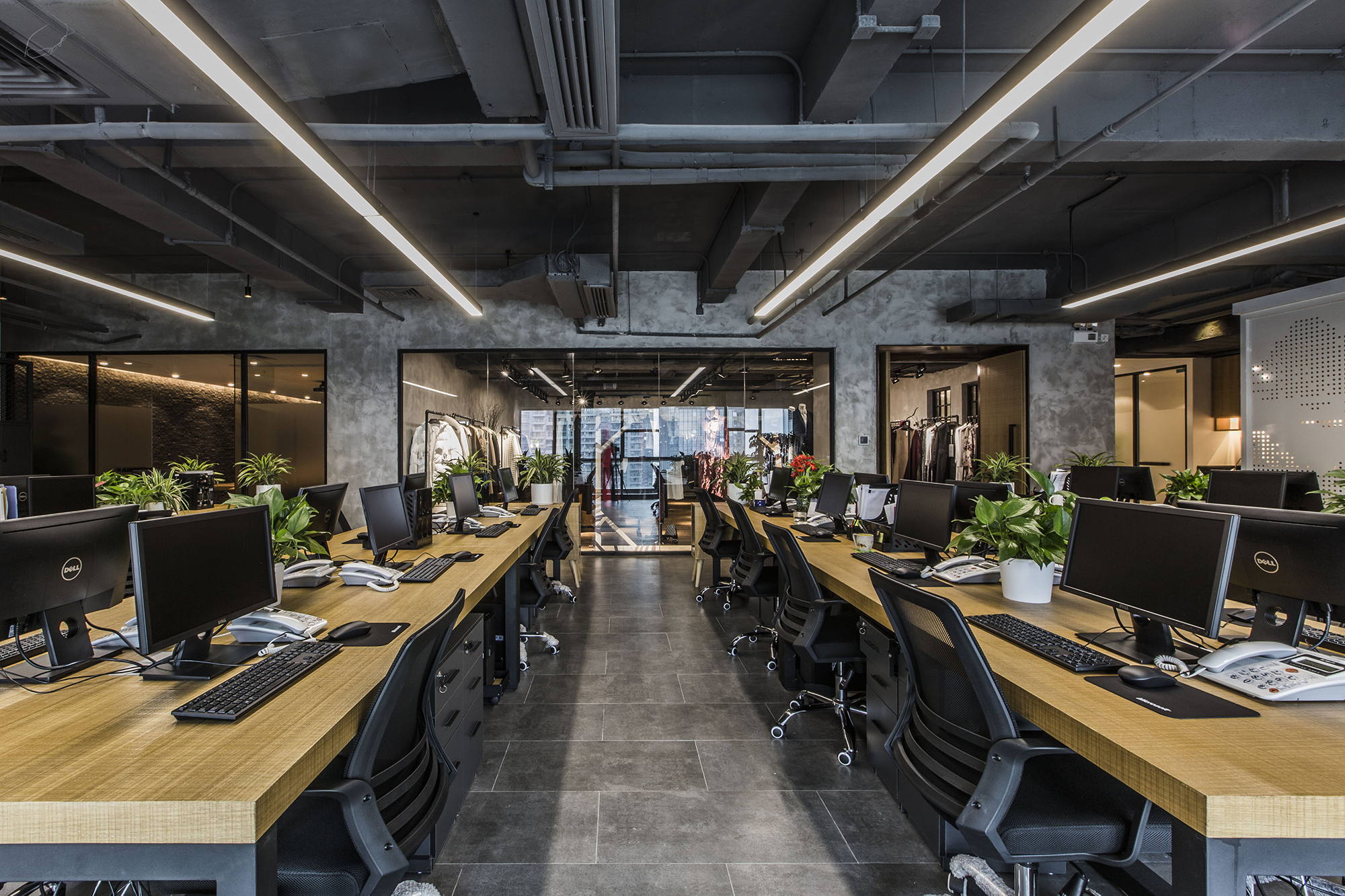

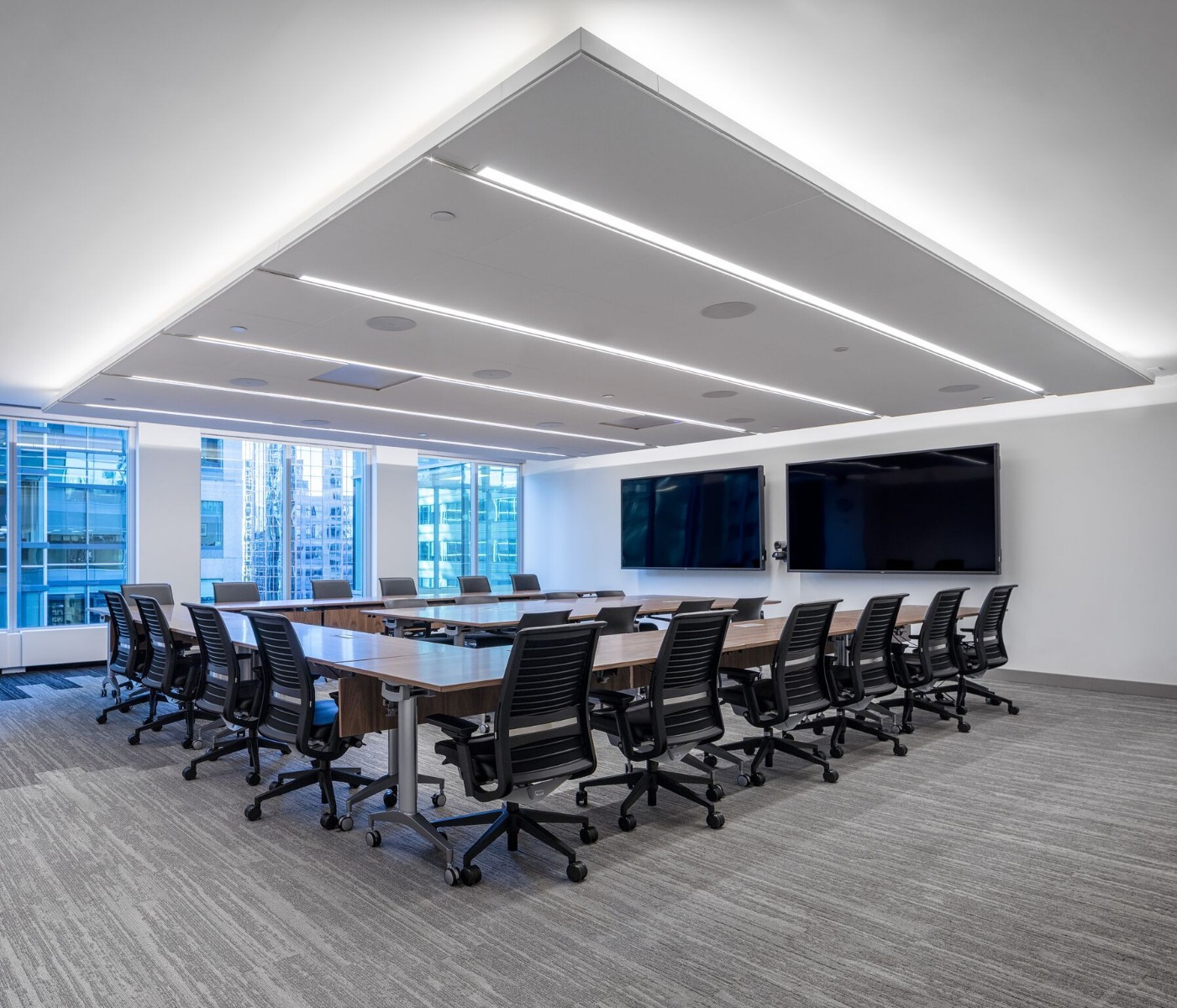

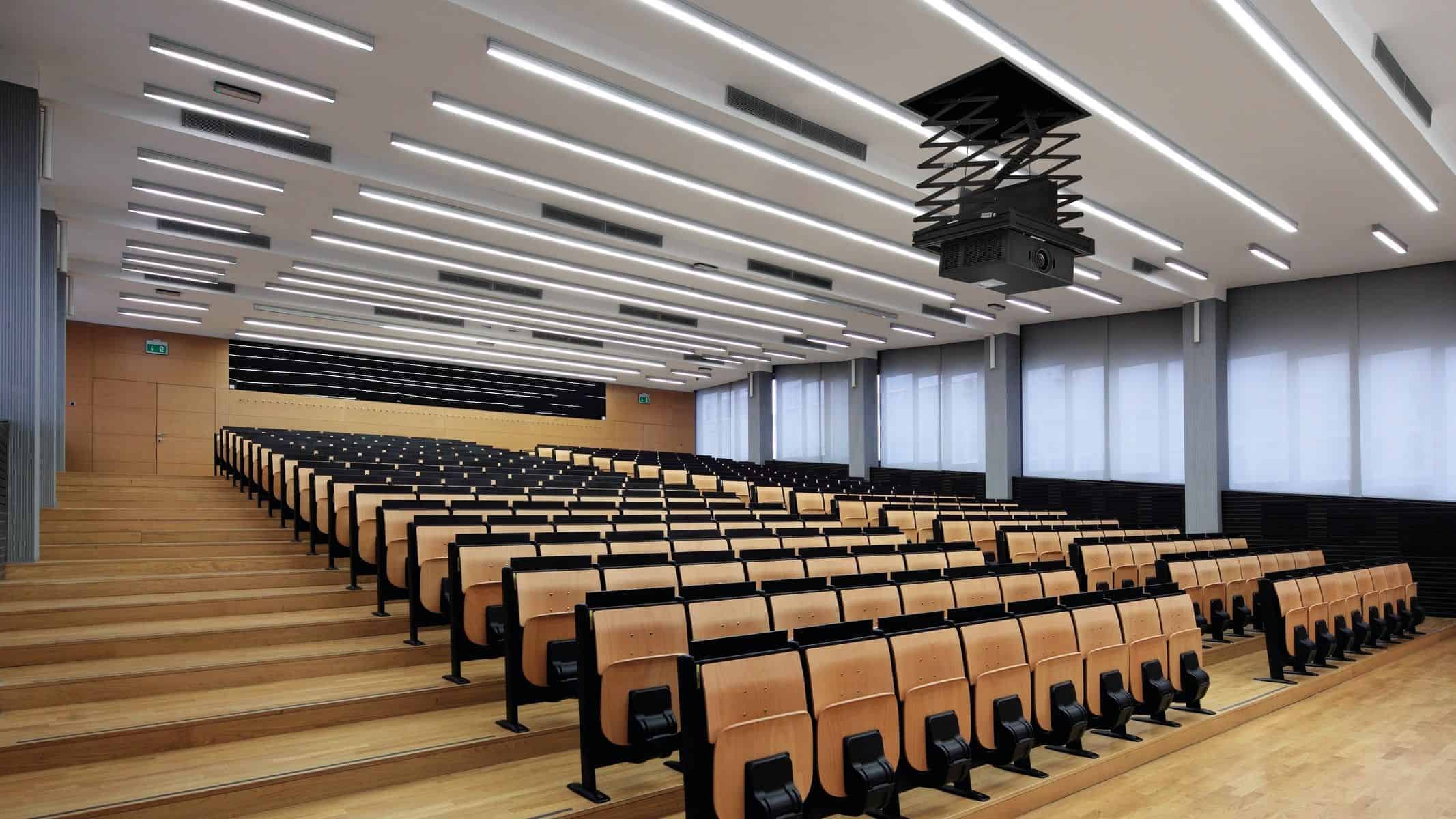

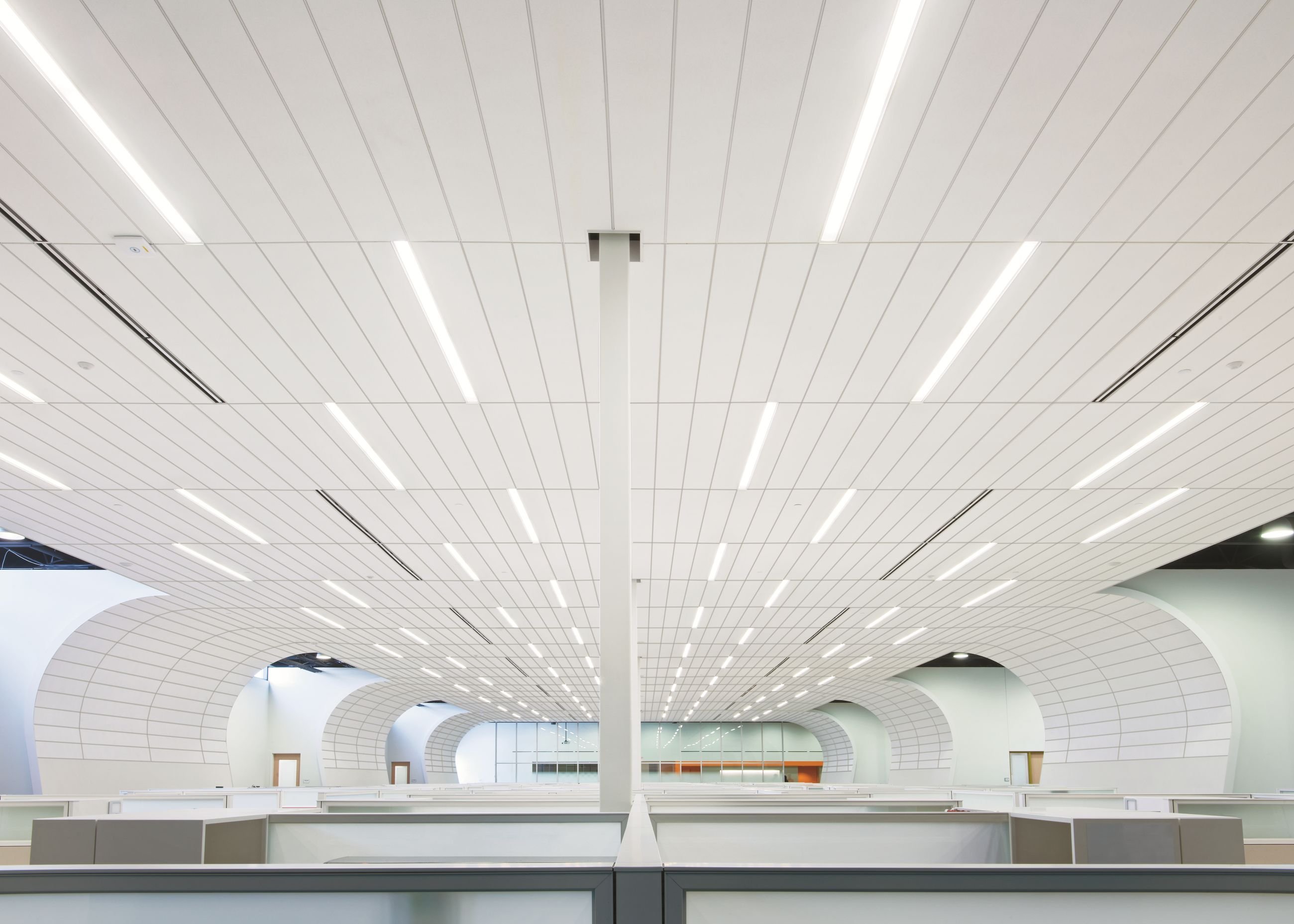

4. The lights feature a constant current and constant voltage intelligent control system, ensuring high light efficiency and long lifespan. Ideal for schools, offices, hotels, and airports.
